Run Hours vs. Load Hours: The Gap Tells the Story

Two counters can tell a much better story together than either one tells alone.

The run-hour meter tells us how long the compressor motor was running. The load-hour meter tells us how long the machine was actually loaded and producing compressed air. On a fixed-speed load/unload compressor, the difference between those counters is time the motor ran without delivering air.

That difference is easy to overlook. A machine can add 2,000 run hours between service visits and look busy. But if it added only 1,200 load hours, it was loaded for 60% of that interval. The other 800 hours still aged parts and consumed electricity without producing usable air.

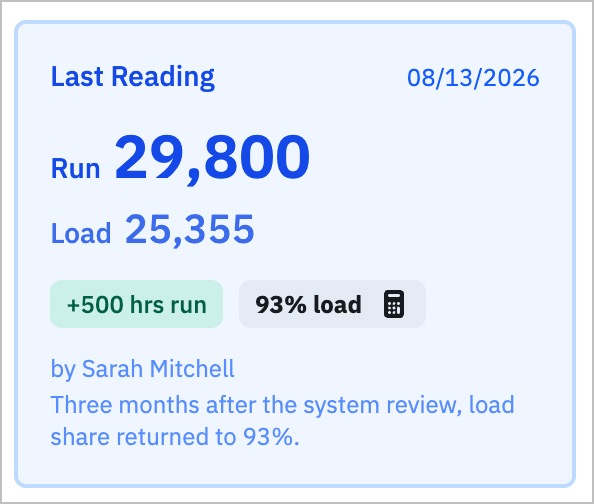

NORDVEST puts the interval result next to the cumulative meters. In the example below, 93% load describes the 500 run hours added since the previous reading—not the lifetime relationship between 25,355 load hours and 29,800 run hours.

The latest reading records both the interval result and the service context behind it.

Calculate the interval, not the lifetime average

The useful calculation is:

Load percentage = load hours added ÷ run hours added × 100

Suppose a technician records these meters at two visits:

The compressor added 500 run hours and 340 load hours. Its load percentage for that interval was 68%.

Dividing 16,540 by 18,500 would produce an 89% lifetime average. That sounds healthy, but it hides what changed since the last visit. Years of strong operation can keep the lifetime percentage high long after the current duty has fallen off.

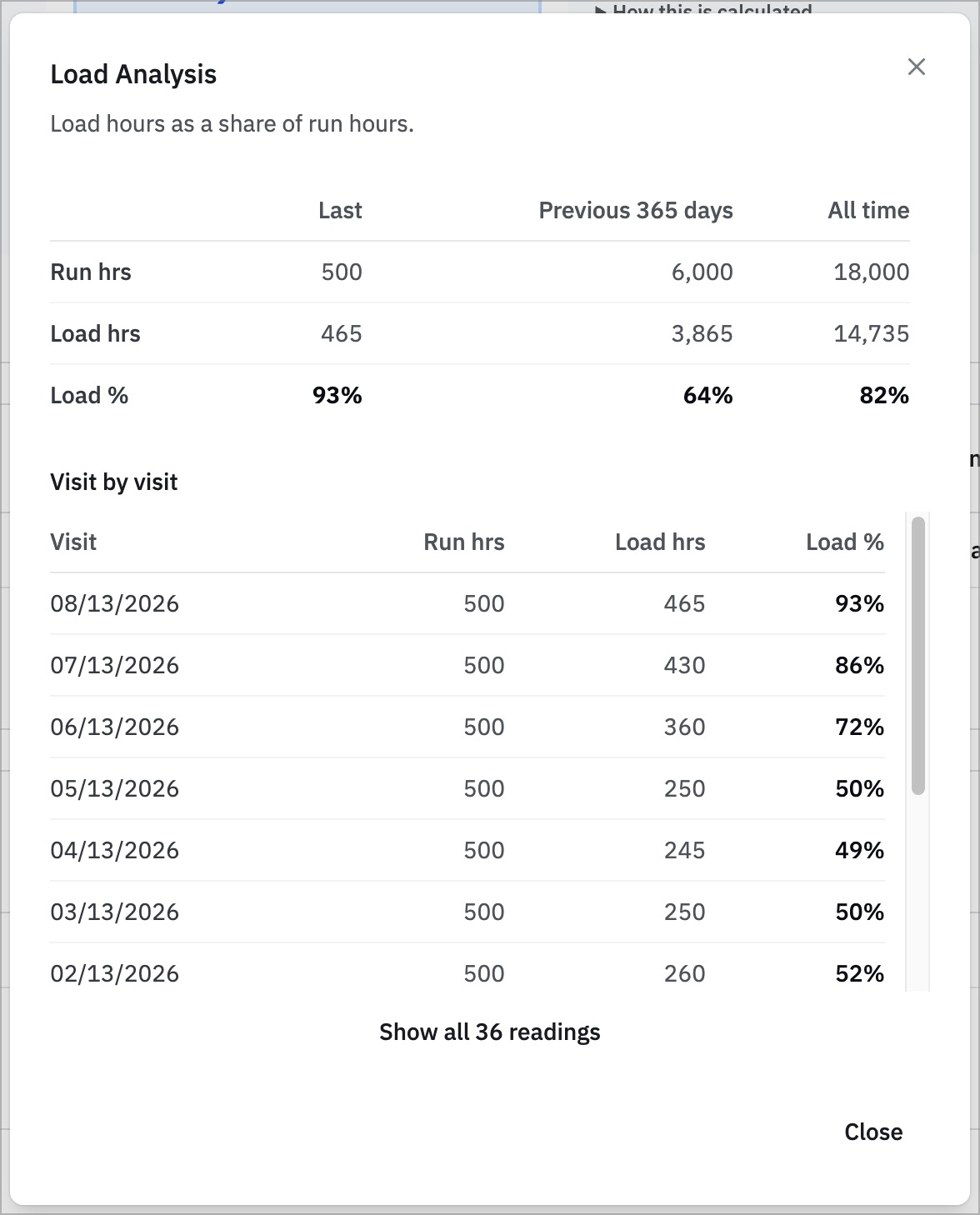

That is why a trend matters. NORDVEST keeps the last interval, the previous 365 days, the all-time result, and the visit-by-visit history together. A technician can see a year-long slide from the low 90s into several months near 50%, then verify whether changes made three months ago carried the machine back into the 90s.

The latest interval has recovered, while the 365-day and visit-by-visit views preserve the longer story.

What the gap can mean

On a fixed-speed machine, unloaded time is not free. The U.S. Department of Energy's compressed-air sourcebook uses roughly 20% to 30% of full-load power as an estimate for a fully unloaded lubricated rotary screw compressor. The motor is still turning even though the machine is not delivering useful air.

A widening run/load gap can point toward:

• a compressor that is too large for the current demand;
• a base-load and trim sequence that is no longer sharing work correctly;
• inadequate storage or a narrow pressure band;
• air demand that has changed with shifts, production, or season;
• leaks or after-hours demand keeping a machine available when it should stop;
• frequent load/unload operation that deserves a closer look at controller cycle counts; or
• low-load operation that is not bringing the package up to temperature long enough to manage moisture in the fluid.

It is a clue, not a diagnosis.

Below 80% is a conversation, not a universal failure line

For a base-load fixed-speed compressor, most manufacturers want to see below 80%. That threshold is useful for starting a conversation, but it is not an OEM limit and it should not be applied blindly.

A trim compressor may be doing exactly what the system needs while showing a lower load percentage. A standby machine should not look like the base-load machine. A variable-speed compressor follows a different control strategy altogether - although even those we've had issues where production schedules change and they can get wonky, too. And a machine sitting at nearly 100% load could be well matched—or it could be the only machine left trying to cover more demand than it should.

The role of the machine matters as much as the percentage.

Run/load hours also do not tell us the number of load cycles. Two machines can both finish a month at 80% load: one may have long, stable loaded and unloaded periods, while the other changes state every minute. If cycling is the concern, read the controller's load/unload and motor-start counters or install a data logger. The hour meters tell us where to look; they do not replace that measurement.

The service conversation

When the interval drops, a technician has a useful path to follow:

1. Confirm the readings. Check both meters, the dates, and whether either controller or meter has been reset or rolled over (something NORDVEST supports, by the way).
2. Identify the machine's role. Is it base load, trim, standby, or variable speed? Is the sequence operating the way the customer expects?
3. Ask what changed. Production schedule, shifts, equipment additions, shutdowns, and seasonal demand can all change the pattern.
4. Check the controls and storage. Review the pressure band, unload timer, receiver capacity, and controller cycle counts before changing settings.
5. Look for system demand that should not be there. Leaks and after-hours use can keep a compressor running or periodically loading when production is down.
6. Check the oil's condition and down-stream effects. Low load percentage can contribute to blow-by and moisture issues. Check the oil level but also look for signs of excessive blow-by.
7. Measure before promising savings. Run/load meters are a strong screening tool. Flow, pressure, and electrical logging are the next step when the customer needs a design decision or a savings estimate.

The goal is not to walk in and declare that every compressor must run 100% loaded. The goal is to recognize when the machine's operating pattern has changed, understand why, and help the customer decide what to do next.

Record both meters every time

One reading is a snapshot. Two readings create an interval. A few years of consistent readings create a story.

That story prepares a technician for a better conversation than “the hours went up.” It can show when the system changed, whether the change persisted, and which questions are worth the customer's time.

With enough clean history, NORDVEST can also project both meters forward for planning. The projection is not a diagnosis; it is an expected path based on the operating history recorded so far.

Consistent meter readings turn a service record into a forward-looking maintenance aid.
